Kay PWODWI Metal ki pa -fèr Zikonyòm Detay yo

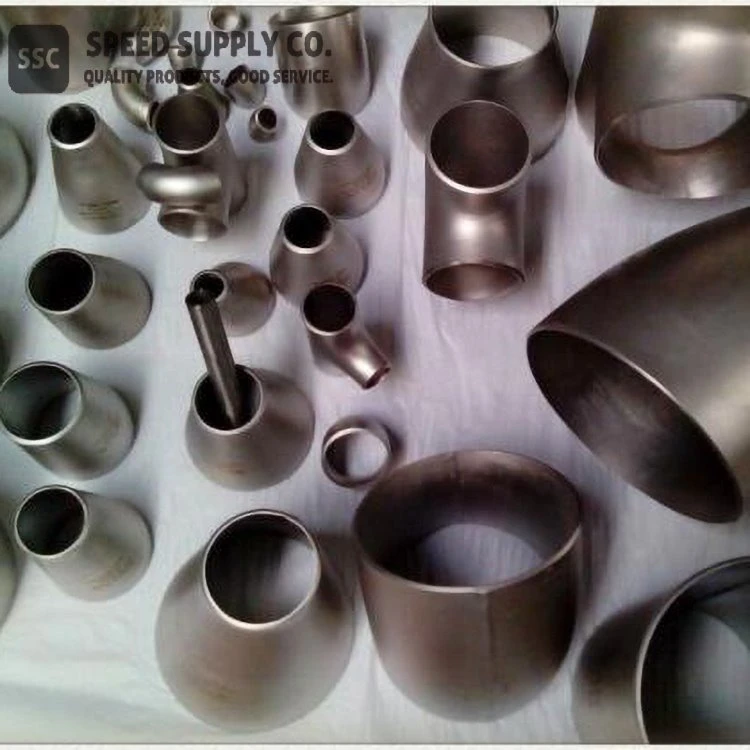

Zirkonyòm tiyo Fittings

Materyèl: R60702, R60704, R60705

Fonksyon

Materyèl:	R60702, R60704, R60705
Pite:	95 pousan ~ 99.5 pousan
Estanda:	ASTM B551
Aparans:	Solid ajan
Gwosè:	Pou chak desen

Zirkonyòm tiyo Fittings Deskripsyon

Fittings tiyo zirkonyòm (fittings tiyo Zr) gen ekselan rezistans korozyon, osi byen ke bon pwopriyete mekanik ak transfè chalè, epi yo ekselan materyèl estriktirèl korozyon ki reziste.

SSC founi tiyo zirkonyòm ak ekipman pou pi gwo izin chimik ak petwochimik atravè mond lan. Redwi alokasyon korozyon ki nesesè yo vire nan pi mens tiyo miray, kidonk Sch 10 ak Sch 40 se epesè ki pi komen nou bay.

Kalite Fitting tiyo

● Coupling

● Koud

● Bride

● Plòg tiyo

● Tiyo pwent tete

● Soude bouchon

● Larsen

● Bouch fen

● Tee

Zirkonyòm Fitting Espesifikasyon

TIP	GWO NOMINAL (PUS)	Epesè	ASTM SPEC
90 degre koud - Long reyon	1/2" pou 24"	Sch. 10, 40	B 363-WPT2
Koud 90 degre - Kout Reyon	1" pou 24"	Sch. 10, 40	B 363-WPT2
45 degre koud - Long reyon	1/2" pou 24"	Sch. 10, 40	B 363-WPT2
Konsantrik redukteur	1" x 1/2" jiska 12" x 10"	Sch. 10, 40	B 363-WPT2
Eksantrik redukteur	1" x 1/2" jiska 12" x 10"	Sch. 10, 40	B 363-WPT2
Long Branch Dwat Tee	1/2" pou 24"	Sch. 10, 40	B 363-WPT2
Kout Branch Dwat Tee	1/2" pou 24"	Sch. 10, 40	B 363-WPT2
Diminye Tee	1" x 1" x 1/2" jiska 20" x 20" x 16"	Sch. 10, 40	B 363-WPT2
WN & Lap Joint Stub End	1" pou 24"	Sch. 10, 40	B 363-WPT2
Couplage (mwatye ak plen)	1/2" pou 2"		B 348

Konpozisyon chimik

	Sn	Fe	Kr	Ni	Hf	Nb	Zn plis Hf
Zr 702	/	<>	<>	/	1 ~ 2.5 pousan	/	~99.5 pousan
Zr 704	1 ~ 2 pousan	{{0}}.1 ~ 0.2 pousan	{{0}}.1 ~ 0.2 pousan	/	<>	/	~97.5 pousan
Zr 705	1 ~ 2 pousan	<>	<>	/	<>	2 ~ 3 pousan	~95.5 pousan

Pwopriyete Fizik

Materyèl	Eta	Rm(Pi gran pase oswa egal a)/MPa	Rp0.2(Pa	A50mm (pi gran pase oswa egal a) / pousan
Zikonyòm 702 (UNS R60702)	Rkwit	379	207	16
Zikonyòm 704 (UNS R60704)	Rkwit	413	241	14
Zikonyòm 705 (UNS R60705)	Rkwit	552	379	16
